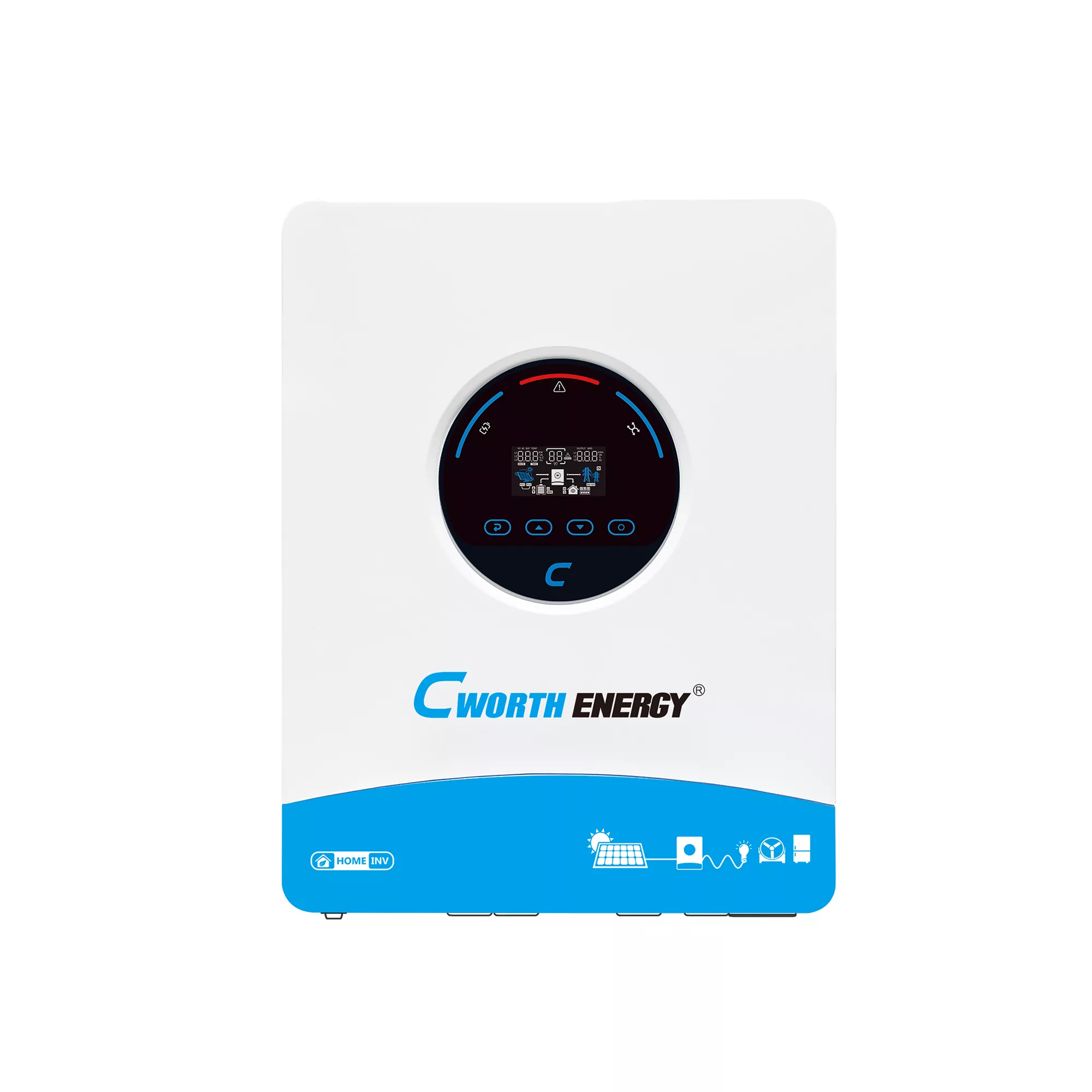

Cworth 6kVA Hybrid Inverter

Product Description

CE-H6K Rated Output Power (W) 6000W Nominal DC Input Voltage 48V Input Voltage Waveform Sinusoidal (Utility or generator) Nominal Input Voltage 230Vac Low Line Disconnect 90Vac±3V (Home Appliances) / 170Vac±3V (Computers) High Line Voltage Disconnect 280Vac±3V Nominal Input Frequency 50Hz / 60Hz (Auto detection) Efficiency (Line Mode) >95% (Rated R load, battery full charged) Transfer Time (Single unit) 10ms typical (UPS) / 20ms typical (Appliances) Pass Through Without Battery Yes Max. Inverter/Rectifier Current 27.3A/6000W Max. Grid Charge Current 120A Charge Current Regulation 10A–Max. Grid Charge Current (Adjustable unit is 1A) Over Charge Protection Yes Max. PV Open Circuit Voltage 500V PV Voltage Range 85V–450V Max. Input Power 6000W Max. Solar Charging Current 120A Max. Input Current 27A Algorithm Three stage: Boost CC → Boost CV → Float FV Dc Max. Charging/Discharging Current 120A/125A Output Voltage Waveform Pure sine wave Nominal Output Voltage 230Vac±5% Nominal Output Frequency 50±0.3Hz / 60Hz±0.3Hz (Adjustable) Parallel Capability Yes, up to 12 units Peak Efficiency 93% Output Short Circuit Protection Yes High Dc Input Alarm & Fault 62V±0.4V High Dc Input Recovery 60V±0.4V Operating Temperature -15°C~60°C Storage Temperature -15°C~60°C Net Weight 13kg Product Dimension (D×W×H) 347×445×120mm
