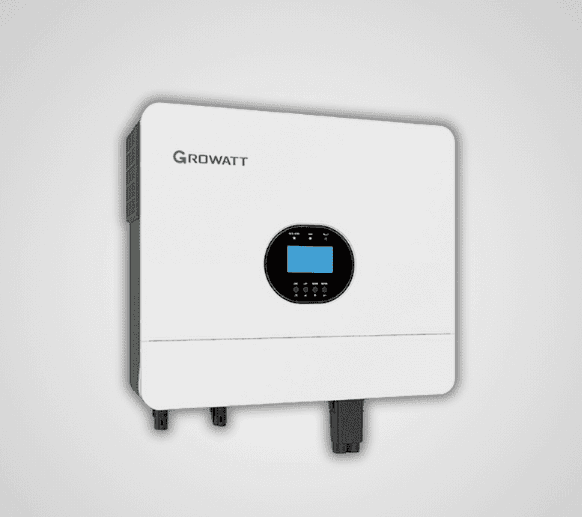

Growatt 6kVA Hybrid Inverter

Product Description

Battery voltage 48VDC Battery type: Lithium/Lead-acid Inverter Output Rated power: 6000VA/6000W Parallel capability: Yes, 6 units maximum AC voltage regulation: 230VAC = 5% @ 50/60Hz (battery mode) Surge power: 12000VA Efficiency (peak): 93% Waveform: Pure sine wave Transfer time: 10ms typical, 20ms Max Grid Output (AC) Nominal output voltage: 230VAC Output voltage range: 195.5-253VAC,184-264.5VAC, 184-264.5VAC (Selectable) Nominal output current: 27A Power factor: >0.99 Solar charger Maximum PV array power8000W MPPT range @ operating voltage: 120VDC ~ 450VDC Number of independent MPP trackers/: 2/1 strings per MPPT tracker Max. input current per MPPT tracker: 16A Maximum PV array open circuit voltage: 500VDC Maximum solar charge current: 100A AC charger Charge current: 80A AC input voltage: 230VAC Selectable voltage range: 170-280 VAC (For personal computers) ; 90-280 VAC (For home app Frequency range: 50Hz/60Hz (Auto sensing) Physical Protection degree: IP20 Dimension (W/H/D): 460/395/132mm Net weight: 13.5kg Operating environment Humidity: 5% to 95% Relative humidity(Non-condensing) Altitude: <2000m Operating temperature: 0°C - 55°C Storage temperature: -15°C - 60°C
